Overview

A Service Key is the serialized private key for a service-owned DID. It enables Nuwa services (e.g., MCP Server/Proxy, LLM Gateway) to authenticate/authorize, price requests, and settle revenue.
Please use a dedicated service DID to generate your service key, not your client/user DID. It may lead to unexpected behavior if you use the same DID for both.

​
Prerequisites

​
Step 1 — Create a service-dedicated Agent DID

  1. Sign in at https://test-id.nuwa.dev.
  2. Follow the onboarding to create an Agent DID (the app will claim minimal RGas automatically).
  3. You will get an Agent DID like did:rooch:....

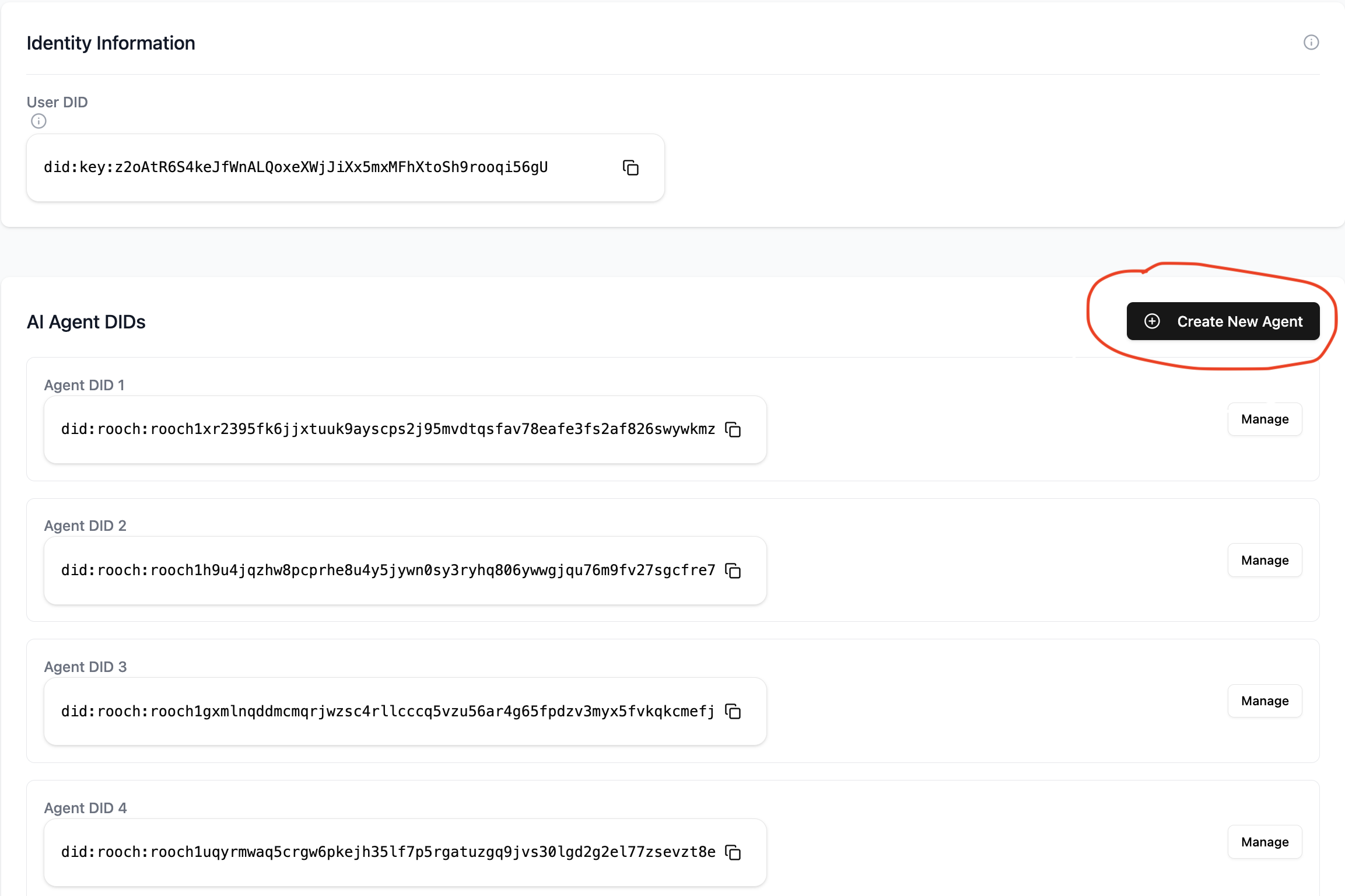

Onboarding - Create Agent (placeholder)

​
Step 2 — Generate ServiceKey and write to DID Document

  1. Open the Agent detail page → click “Add Authentication Method”.
  2. Click “Generate Key Pair” to create a service key pair.
  3. Capabilities: select authentication and capabilityInvocation.
  4. Submit to write the verification method to your DID Document.
  5. Copy the generated Service Key immediately (it is shown only once) and store it securely.
Add Authentication Method form

​
Step 3 — Configure environment and start your service

Use the copied key as SERVICE_KEY:
export SERVICE_KEY="<paste_the_copied_value>"
  • MCP Server: see the “Set environment variables and run” step in the MCP Server guide.
  • MCP Proxy: set serviceKey: "${SERVICE_KEY}" in your config.yaml.
  • Other services (e.g., LLM Gateway): set SERVICE_KEY according to that service’s configuration.
Security tips:
  • Inject via env vars; never commit keys to source control.
  • Rotate keys periodically and separate keys per environment (dev/test/prod).

​
Step 4 — Add your service to the DID (Service record)

  1. In the Agent detail page, open Services → “Add Service”.
  2. Enter your service endpoint (e.g., https://your.domain/mcp).
  3. Ensure the well-known health check passes, then save.

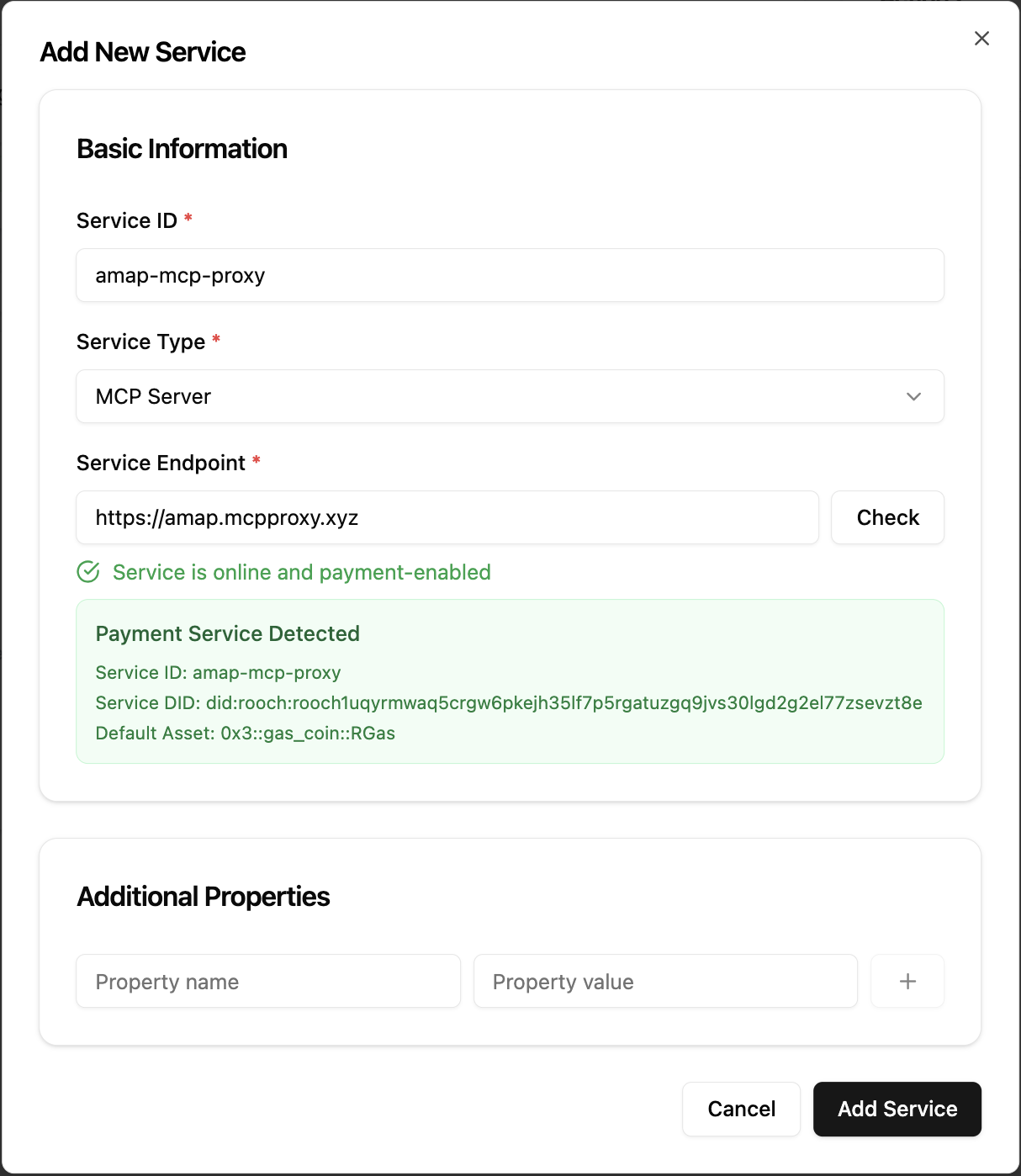

Add Service dialog

​
Step 5 — Verify and see revenue

  1. Call your service using an appropriate client. For MCP-based services you can also use Cap Studio’s MCP Debug tool.
  2. When channel revenue reaches the claim threshold, the service auto-claims.
  3. View balances, withdraw funds, and audit history in the Revenue dashboard.

​
Troubleshooting

  • Passkey/wallet not available: try another browser or re-register.
  • Insufficient gas: wait for faucet claim or retry.

​
Best Practices

  • Environment isolation (dev/test/prod).
  • Secure backups of ServiceKey.
